Product Specifications

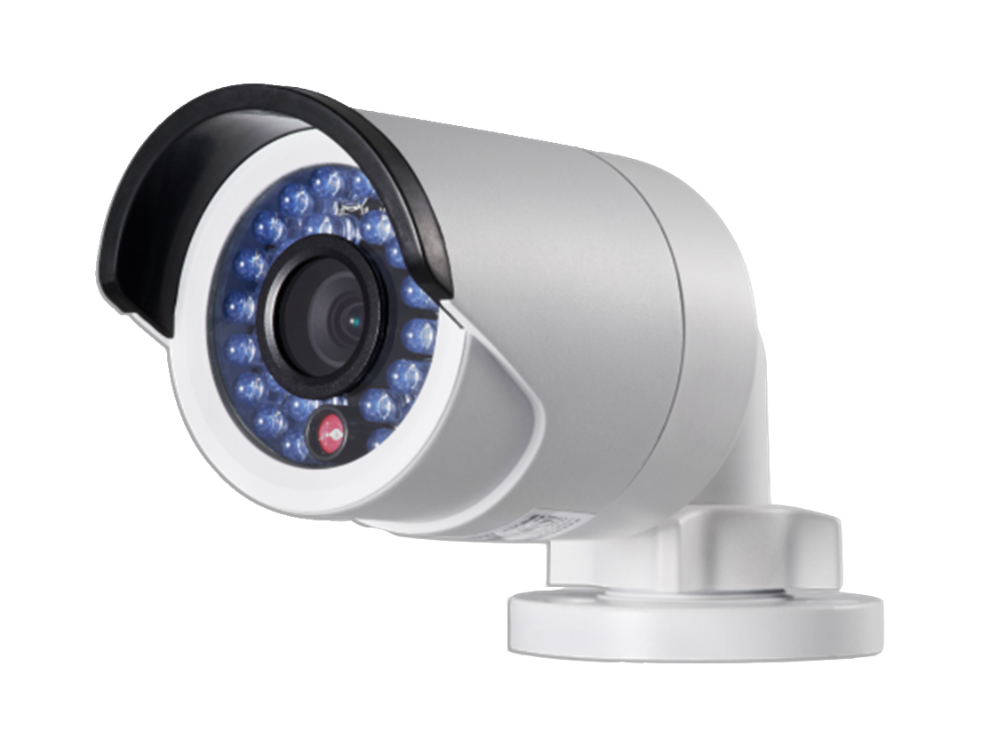

| Product Name | HIKVISION DS-2CD2010F-IW 1.3MP MINI BULLET IP CAMERA WITH WIFI |
| Product Code | HV312004 |
| Brand | HikVision |
| Camera | Image Sensor:1/3″ Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 4mm@ F2.0, Angle of view: 73.1°(6mm optional) |
| Angle of view | 79°(6mm, 12mmoptional) |
| Lens Mount | M12 |
| Day &Night | IR cut filter with auto switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Digital WDR |
| Compression Standard | |
| Video Compression | H.264/ MJPEG |
| Video Bit Rate | 32 Kbps –8 Mbps |
| Dual Stream | Yes |
| Image | |
| Max. Resolution | 1280*960 |
| Frame Rate | 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) |
| Backlight compensation | Yes, zone configurable |
| ROI | Yes |
| Network | |
| Network Storage | NAS(Support NFS,SMB/CIFS) |
| Alarm Trigger | Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QS,IPv6,Bonjour |
| Interface | |
| Communication Interface | 1 J45 0M/100M Ethernet interface |
| Reset Button | Yes |
| Smart Feature-set | |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Wi-Fi Specification (-W) | |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Security | 64/128-bit WEP, PA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Receive Sensitivity | 11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical) |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps11n: up to 150Mbps |
| Wireless Range | 50m(depend on environment) |
| Protocols | 802.11b: CCK, QPSK, BPSK802.11g/n: OFDM |
| General | |
| Operating Conditions | -30 °C –60 °C (-22 °F –140 °F) |
| Humidity | 95% or less (non-condensing) |
| Power Supply | 12 V DC ± 10% , PoE (802.3af) |
| Power Consumption | Max. 5.8W |
| Ingress Protection level | IP67 |
| IR Range | 30 meters |
| Dimensions | 70×157×62mm (2.8” × 6.1” × 2.4”) |
| Weight |
|
